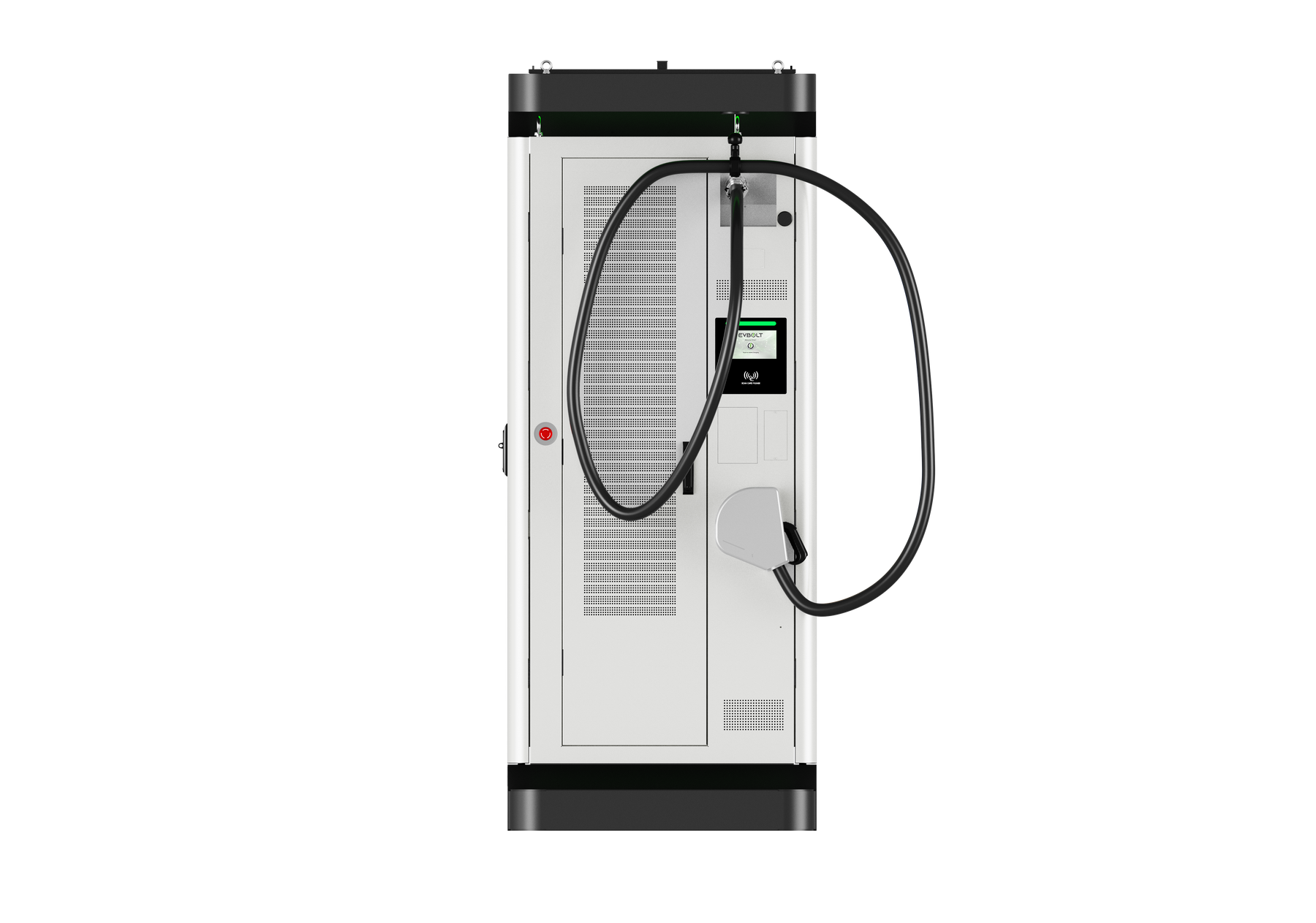

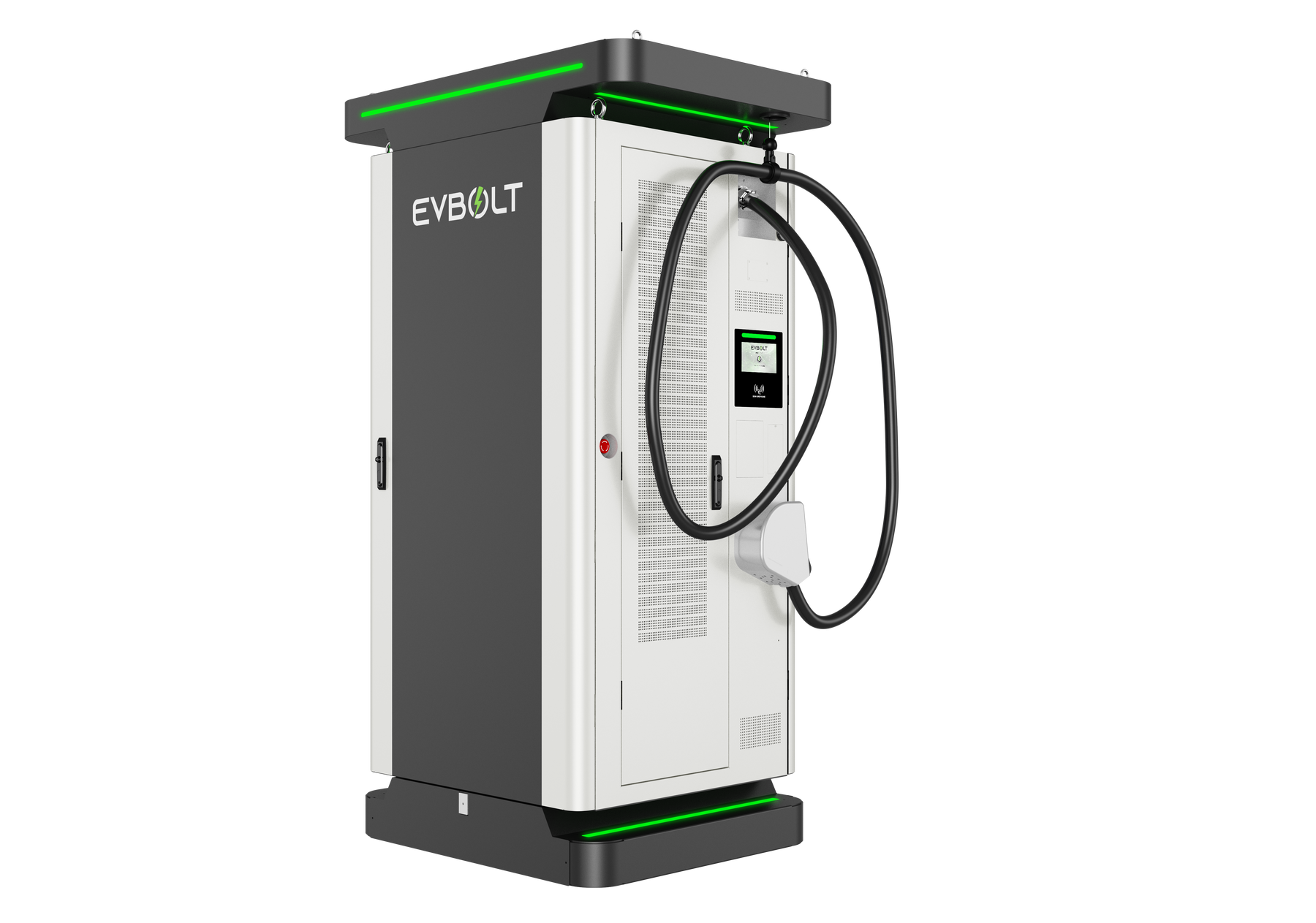

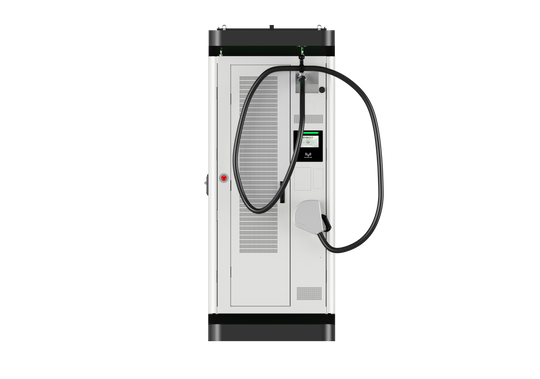

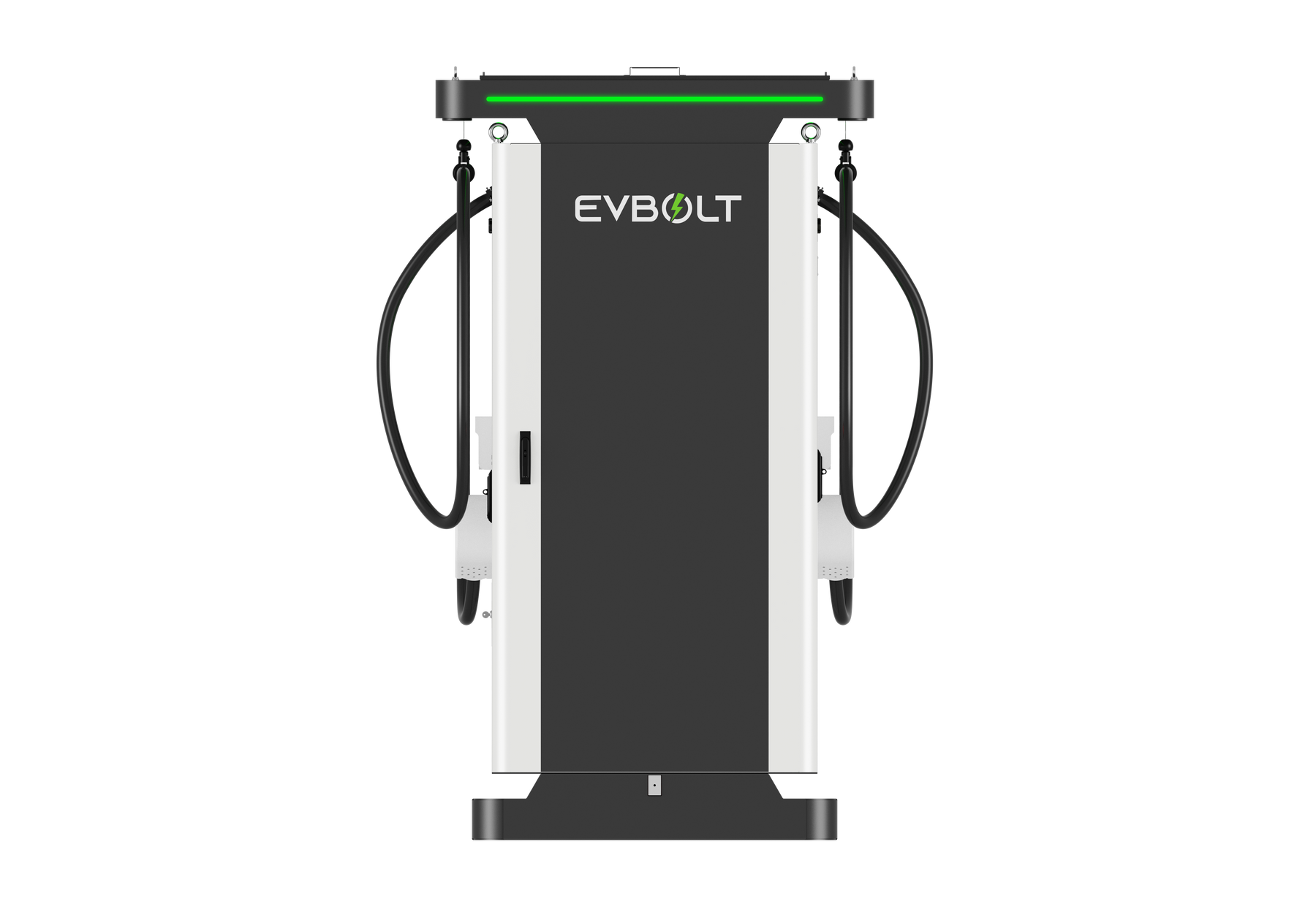

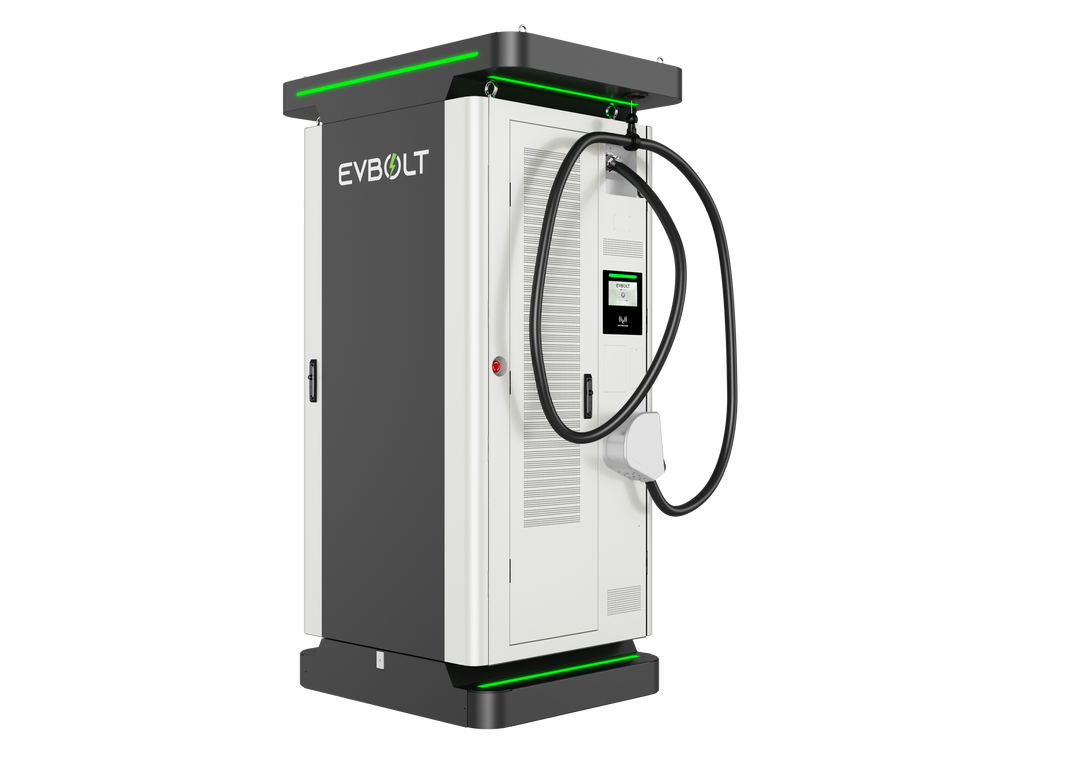

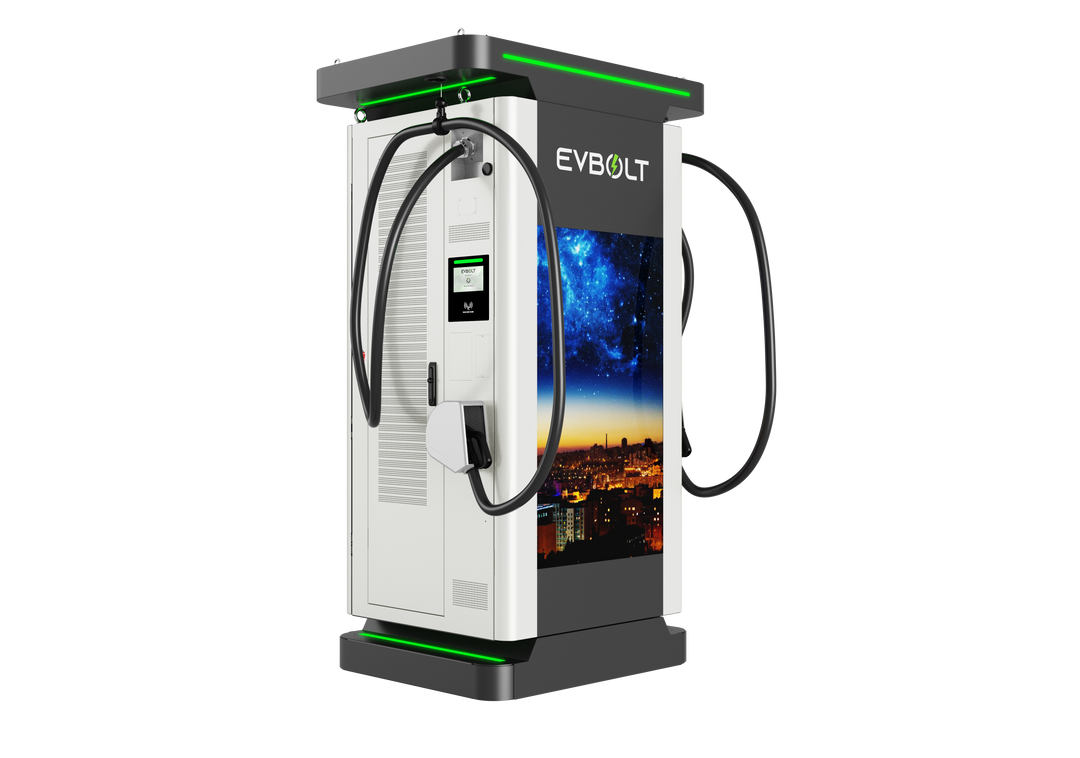

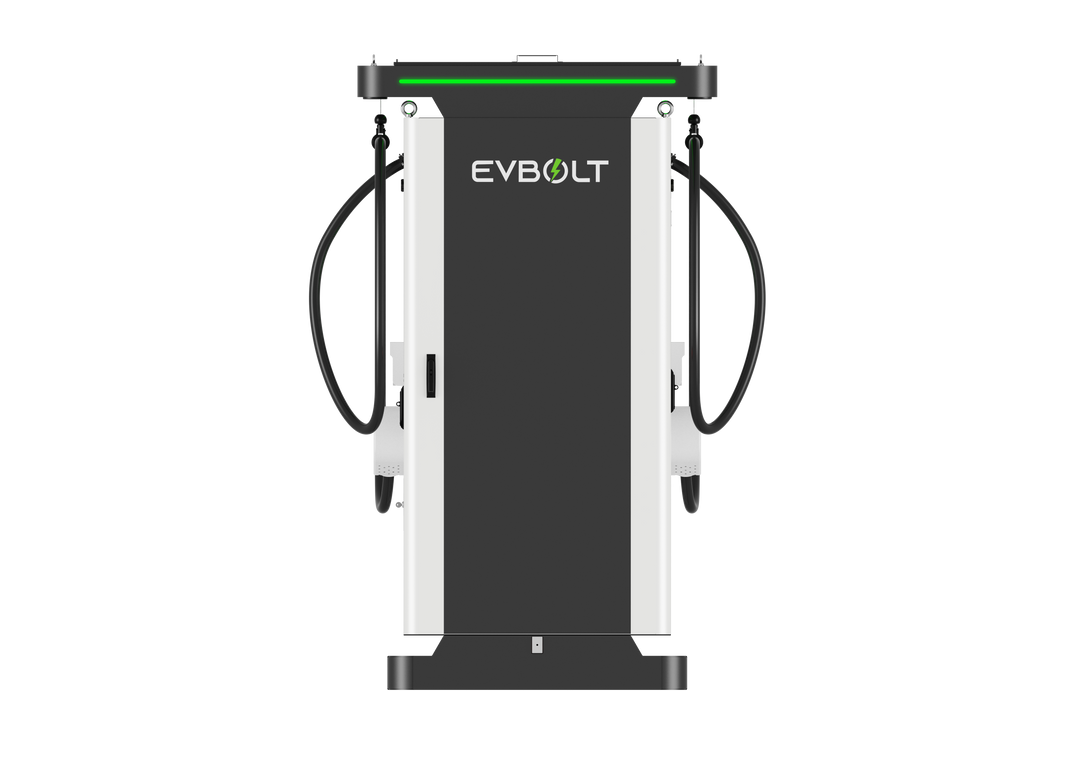

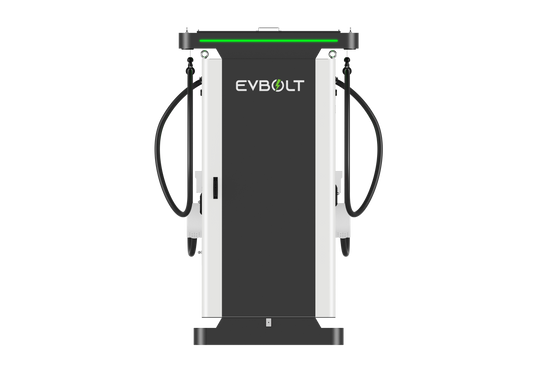

EVBOLT Vision 360 – 150kW Dual-Port DC Fast EV Charger with 55" LCD Display
Designed for High-Traffic Commercial Use, Gas Stations & Highway Corridors
Product Description:
The EVBOLT Vision 360 sets a new industry benchmark as the most powerful and visually compelling dual-port DC Fast Charger on the market. Engineered for gas stations, highway corridors, and high-traffic commercial areas, this cutting-edge charger delivers up to 150kW of output power, allowing two electric vehicles to charge simultaneously with dedicated interfaces and dual 7" interactive touchscreens.

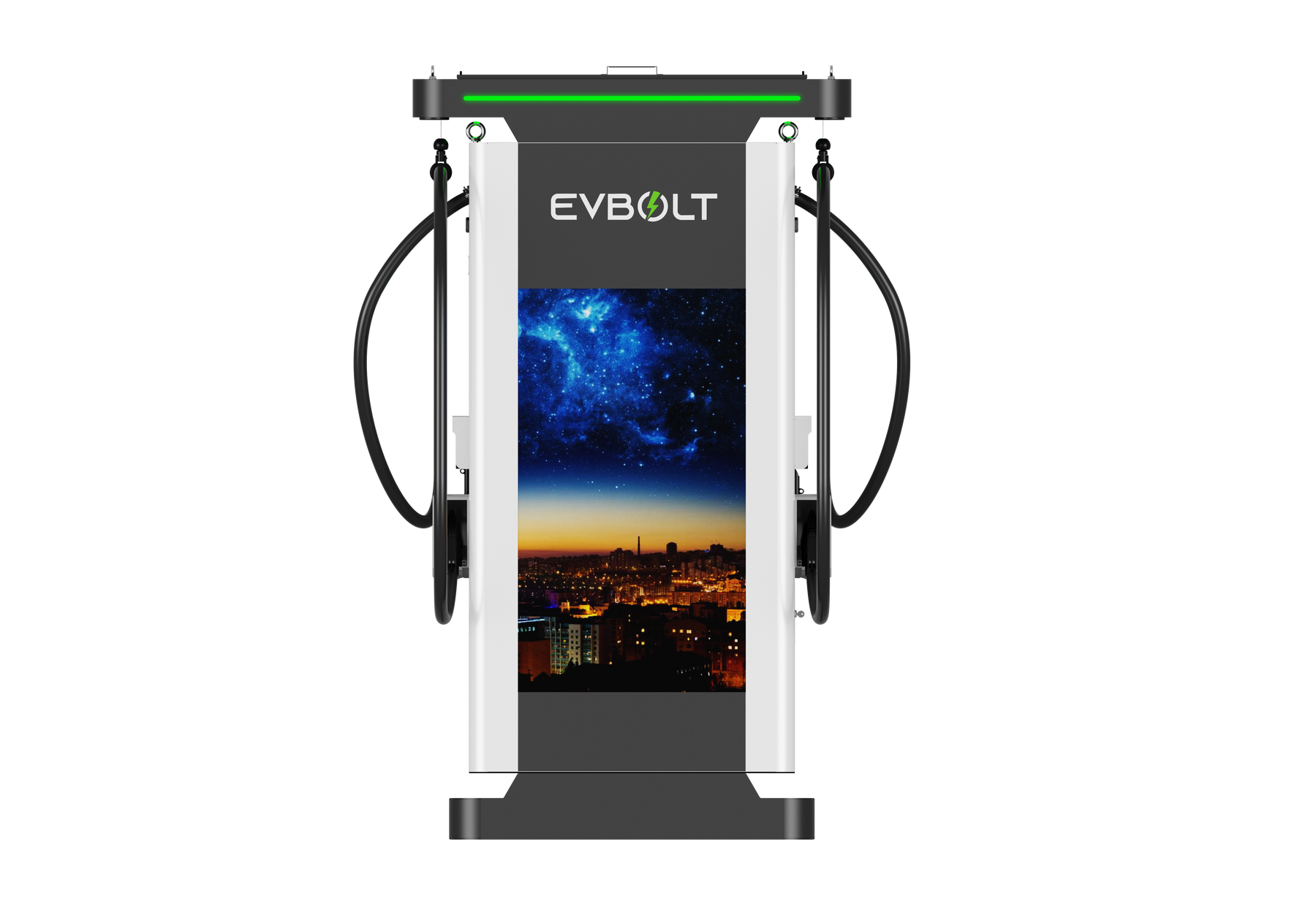

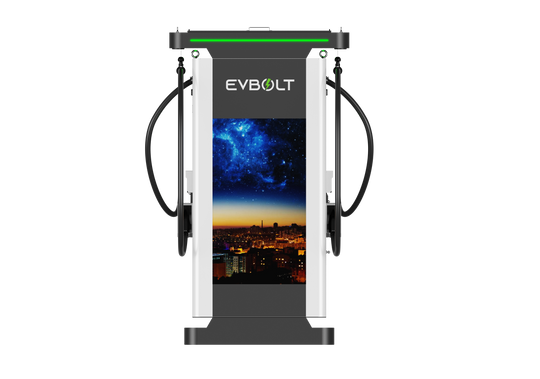

Its sleek form-factor integrates a 55" Full HD LCD advertising display, enabling businesses to generate additional revenue through media placements. With smart cloud-based network controls, OCPP 1.6 JSON compatibility, and flexible authentication methods, the Vision 360 delivers a futuristic, profitable charging experience.
What’s Included:
(1) EVBOLT Vision 360 DC Fast Charger – 150kW Output
(2) 7” Touchscreen User Interfaces (One per Port)
(1) 55” Full HD Advertising LCD Display
Dual 23-ft CCS1 Charging Cables
Integrated Cable Management System
2-Year Cloud Networking Access (IoT SIM Included)
One-Time Commissioning Service (Includes):
-
-
Firmware Update
-
OCPP URL Setup
-
Full System Testing
-
QR Code & Instruction Sticker Application
-
Charger Specifications:
| Specification | Details |
|---|---|
| Power Output | 150kW DC Fast Charging (Dual-Port) |
| Input Power | 3 Phase, 480V AC |
| Output Current | Up to 216A |
| Display | (2) 7” Touchscreens + (1) 55” HD LCD |
| Charging Cable | Dual 23-ft CCS1 Connectors |
| Mounting | Free-Standing with Integrated Cables |
| Connectivity | LAN, Wi-Fi, 4G (IoT SIM Included) |
| Protocol | OCPP 1.6 JSON (2.0 Compatible) |
| Operating Temp. | -22°F to 158°F (-30°C to 70°C) |
| Optional Authentication | RFID, Credit Card Terminal |
Key Features:
Dual 150kW Output – Rapid DC charging for two EVs simultaneously
55" Digital Billboard – Monetize your charger through ad space
Smart Cloud Control – EVBOLT Cloud Network with full remote access
Mobile App Support – User-friendly access through the EVBOLT App
OCPP 1.6J Ready – Seamless backend integration
Extreme Temp Ready – Engineered for all-weather operation
Integrated Cable Management – Clean, safe, and durable design
Certifications:
ETL Listed
Energy Star Certified
OCPP 1.6 JSON Compliant
ISO 15118 Ready
Ideal For:
Gas Stations & Fuel Stops
Highway Charging Corridors
Commercial EV Fleets
Retail Parking Lots
Smart Cities & Public Infrastructure
Product data Sheet Specifications
