Product Description
Commercial-grade dual EV charger with Wi-Fi, 4G, OCPP 1.6, and RFID access. Ideal for public parking, office buildings, retail, and garages.
What’s Included

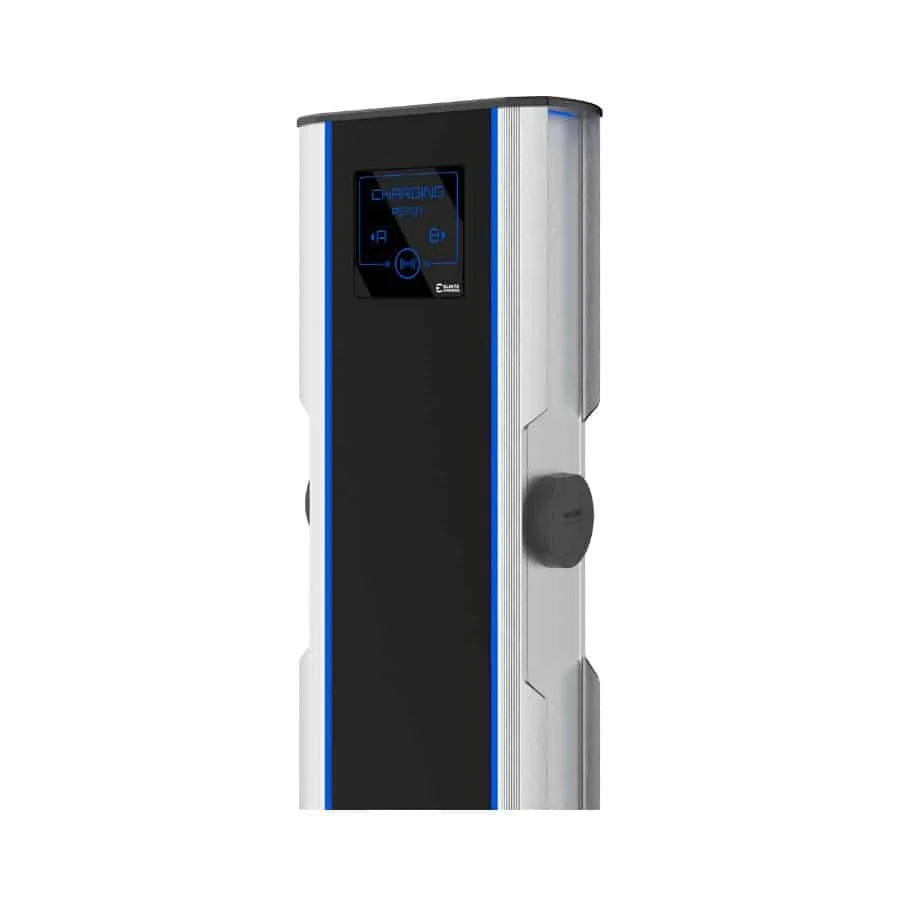

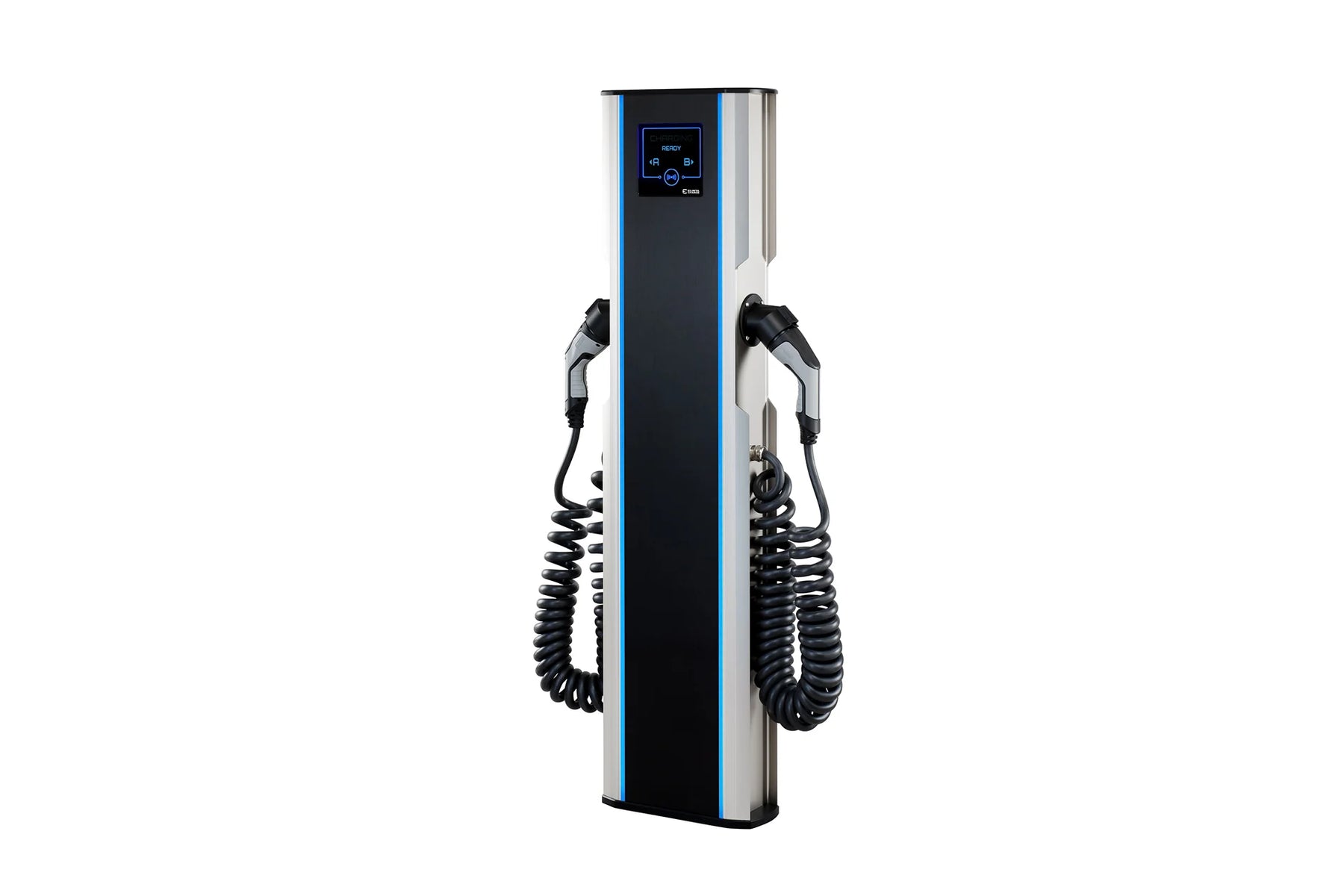

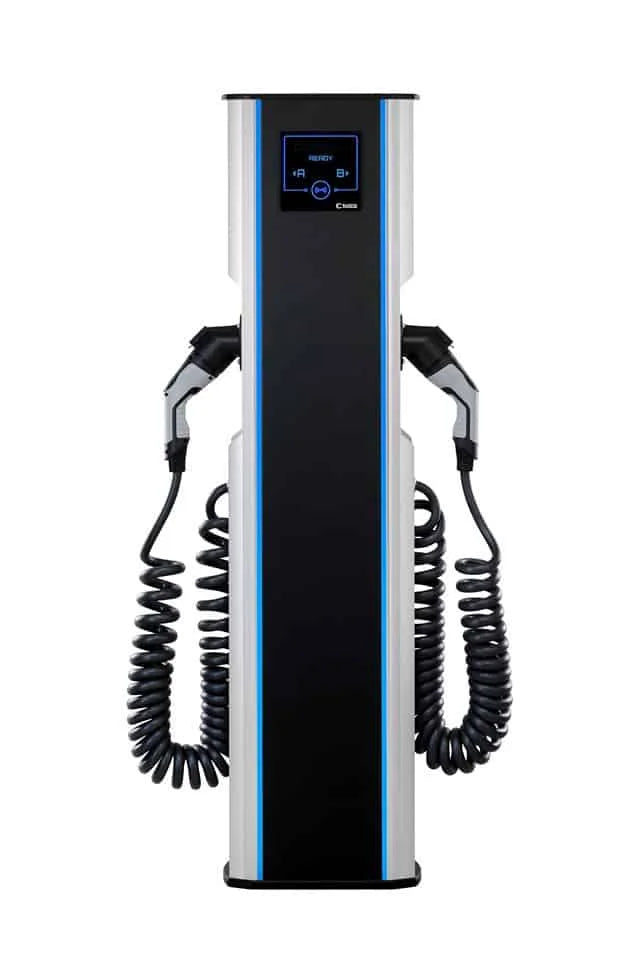

CityCharge V2 Plus Dual-Port Charging Station
16-ft Coiled SAE J1772 Charging Cables (Type 1)
Anodized Aluminum Enclosure – Wall or Standalone Mount
Integrated RFID Access & LED Screen
OCPP 1.6 (2.0.1 Ready Q3/2025)
Elios.Cloud Management Platform
Optional Payter Contactless Credit Card Reader
Free Custom Charger Wrap (1st Order)
Charger Specifications
| Specification | Details |
|---|---|
| Max Output | 2 x 40A / 9.6 kW (per port) |
| Charging Standard | SAE J1772 (Type 1) |
| Mounting Type | Wall-Mount or Standalone |
| Cable Length | 16 ft (coiled) |
| Display | LED Backlit Screen + LED Side Bars |
| Connectivity | Wi-Fi, 4G/SIM, Ethernet, RFID |
| OCPP Protocol | OCPP 1.6 JSON (2.0.1 Q3/2025) |
| Input Power | 208–240V AC, 50/60Hz |
| Safety & Protection | RCD, Short Circuit, Auto Reset |
| Operating Temp | -22°F to 122°F |
| Enclosure Rating | IP54 (Weatherproof), IK10 (Vandal-Resistant) |
Key Features
Dual-Port Fast Charging – Up to 2 x 40A output for simultaneous charging
Premium Materials – CNC-machined anodized aluminum, fade & corrosion resistant
Smart Connectivity – Wi-Fi, Ethernet, 4G/SIM with OCPP 1.6 support
Secure Access – RFID-enabled user control & optional touchless credit card payment
Solar & Dynamic Load Ready – Includes MID-certified smart energy metering
LED Display & Side Bars – Visible in daylight and nighttime
Future-Proof Design – Easily upgradeable components, 80% German parts (no Chinese components)
Benefits
Rapid Public Charging – Perfect for commercial or high-traffic zones
Lower Maintenance Costs – Dual-port efficiency + rugged build
Network Ready – Cloud-managed via Elios.Cloud platform
Flexible Installation – Wall or freestanding options
Weather & Vandal Resistant – IK10 and IP54 rated
Custom Branding – Free wrap on your first order
Ideal For
Public Parking Facilities
Underground & Municipal Garages
Shopping Centers & Retail
Office Buildings & Campuses
Fleet or Workplace EV Programs
Certifications
UL Certified
Energy Star Rated
EPRI Certified
IP54 Weatherproof
IK10 Vandalism-Proof
OCPP 1.6 JSON Compliant (2.0.1 Ready)
How to start charging:
1. The essential step is ensuring the charger is connected to power.
2. Use your Type 1 charging cable plug to connect the charging station to your electric vehicle. Plug the charging station side first and then the car side.
3. Once the charging cable has clicked in place, you are ready to start the charge.
4. Also, there is the option to activate the charging station with RFID cards.
How to stop charging:
1. First, disconnect the Type 1 plug from the electric vehicle’s side when finished charging.
2. After, disconnect the charging station side.
3. Always remove the cable from the charging station when not used.
How to check the charge status:
1. When the charging station is ready for charge, the indicator will appear on the LED screen display.
2. You can monitor the charging process from the Elios.cloud web administration.
