Product Description

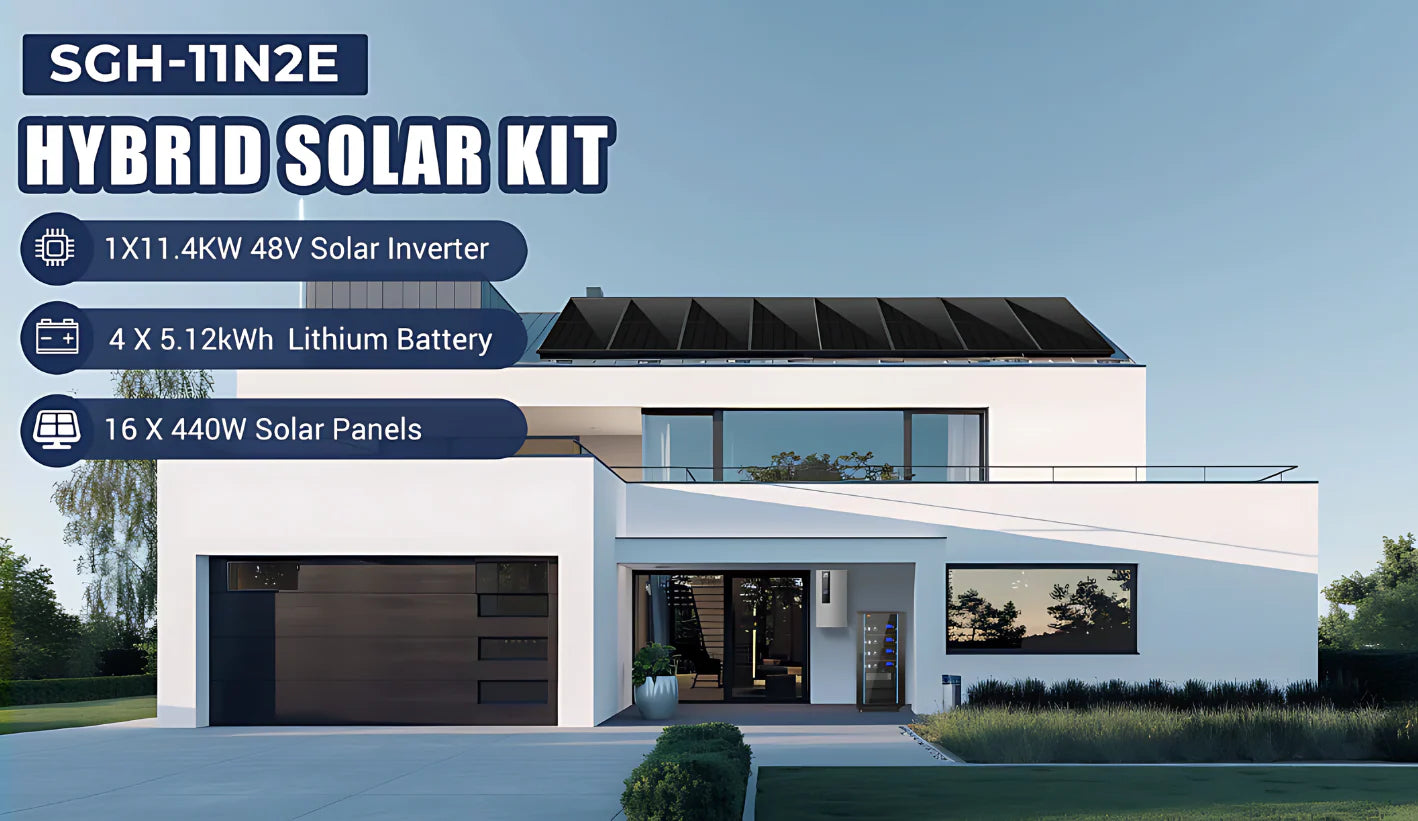

The SunGold Power Hybrid Solar Kit is an all-in-one solar energy solution designed for home backup, off-grid living, and sustainable energy independence. Featuring a powerful 11.4kW hybrid inverter, a 20.48kWh LiFePO4 battery, and 16 x 440W high-efficiency solar panels, this system provides uninterrupted, clean energy for residential and commercial use.

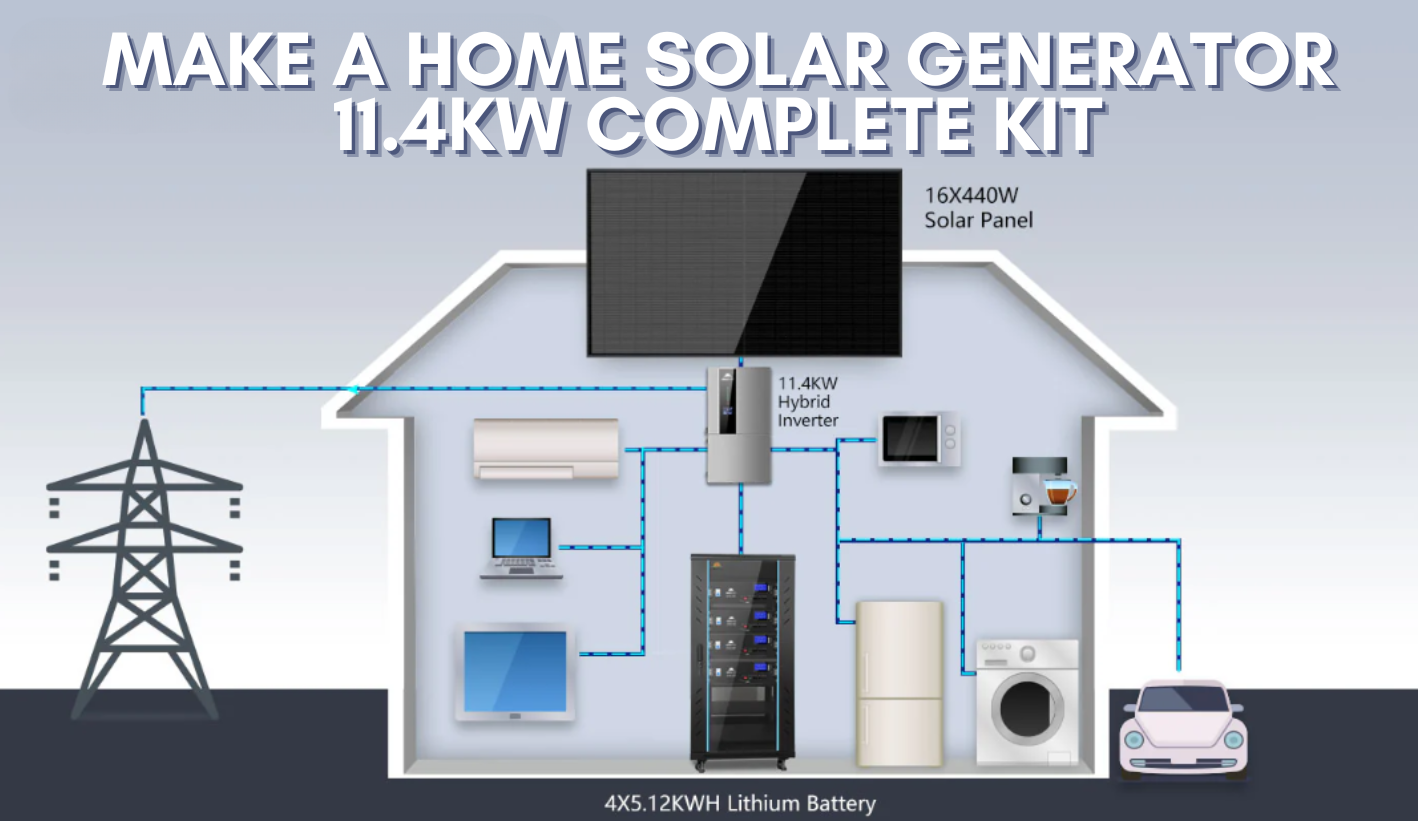

This kit allows for seamless integration with the grid, enabling battery backup during outages, solar energy storage, and off-grid power generation. Whether for full home backup, off-grid cabins, or commercial energy needs, this hybrid system ensures maximum efficiency, scalability, and reliability.

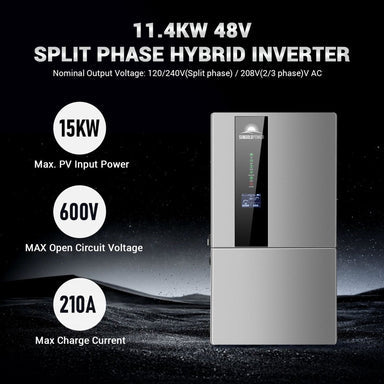

11.4kW Hybrid Split-Phase Inverter
- Seamless Grid-Tie & Off-Grid Capabilities – Functions as both a grid-tied and off-grid inverter for maximum flexibility.
- 48V DC to 120V/240V AC Output – Powers both single-phase and split-phase loads, making it ideal for home appliances, HVAC systems, and heavy equipment.
- Smart Energy Management – Intelligent battery charging, solar optimization, and automatic switching between grid and solar power.
Frequently-Asked Questions
Can this system power my entire home?
Yes, the 11.4kW inverter and 20.48kWh battery allow for whole-home backup power, supporting large appliances, HVAC, refrigerators, and lighting.
How long will the battery last?
The LiFePO4 battery is rated for 7000+ charge cycles, providing 10+ years of performance with consistent power storage.
Can I expand the system with more batteries or solar panels?
Yes! This system is scalable, allowing for additional batteries and solar panels to increase power capacity.
Will this system work in cloudy weather?
Yes, the MPPT charge controller ensures maximum solar efficiency, even in low sunlight conditions.
How difficult is installation?
Installation is straightforward, with pre-configured wiring, plug-and-play connectors, and a detailed setup guide included.

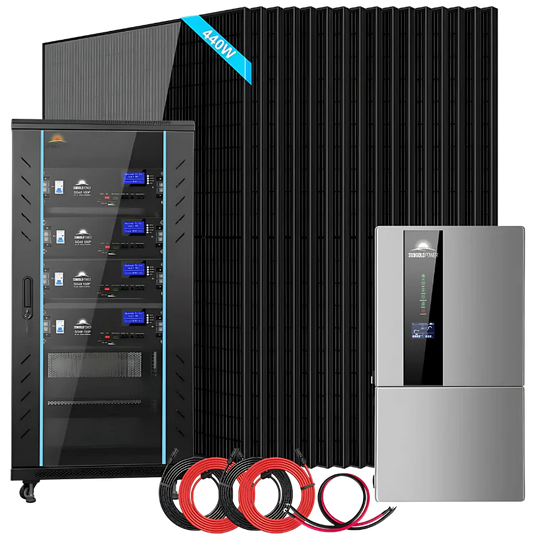

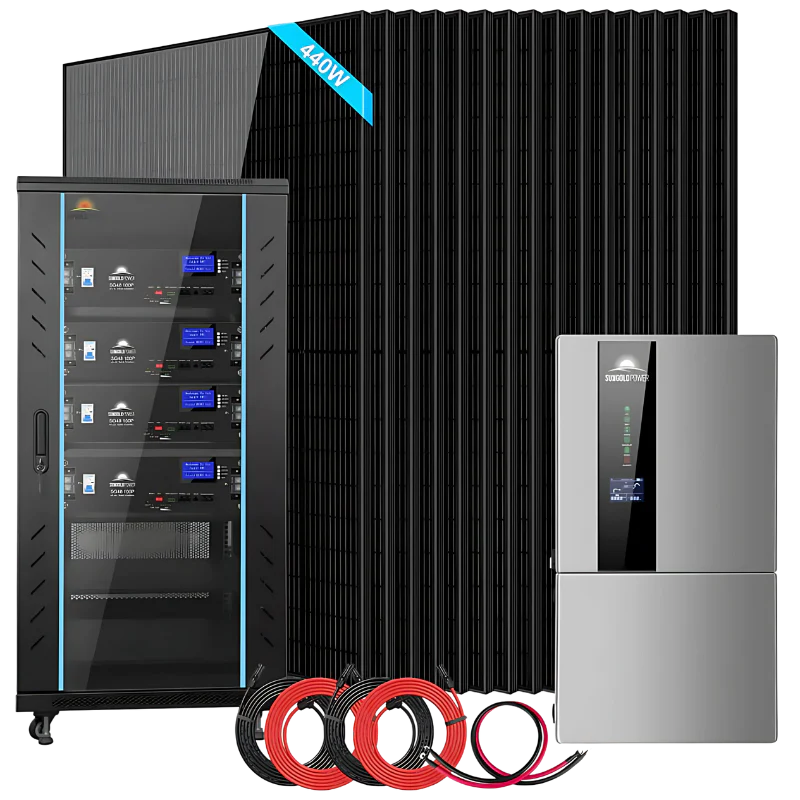

What's Included
Everything you need is included with your product.
- 1 X 11.4KW 48V Split Phase Hybrid Solar Inverter

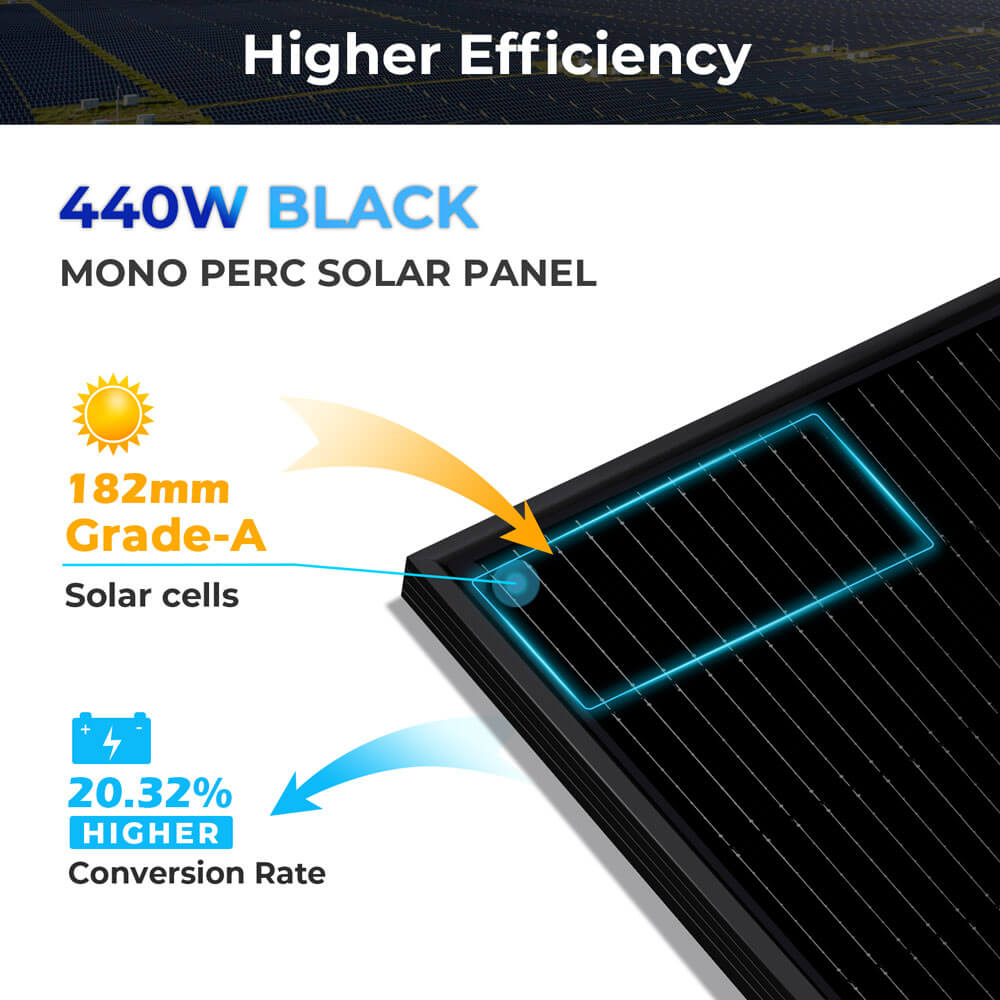

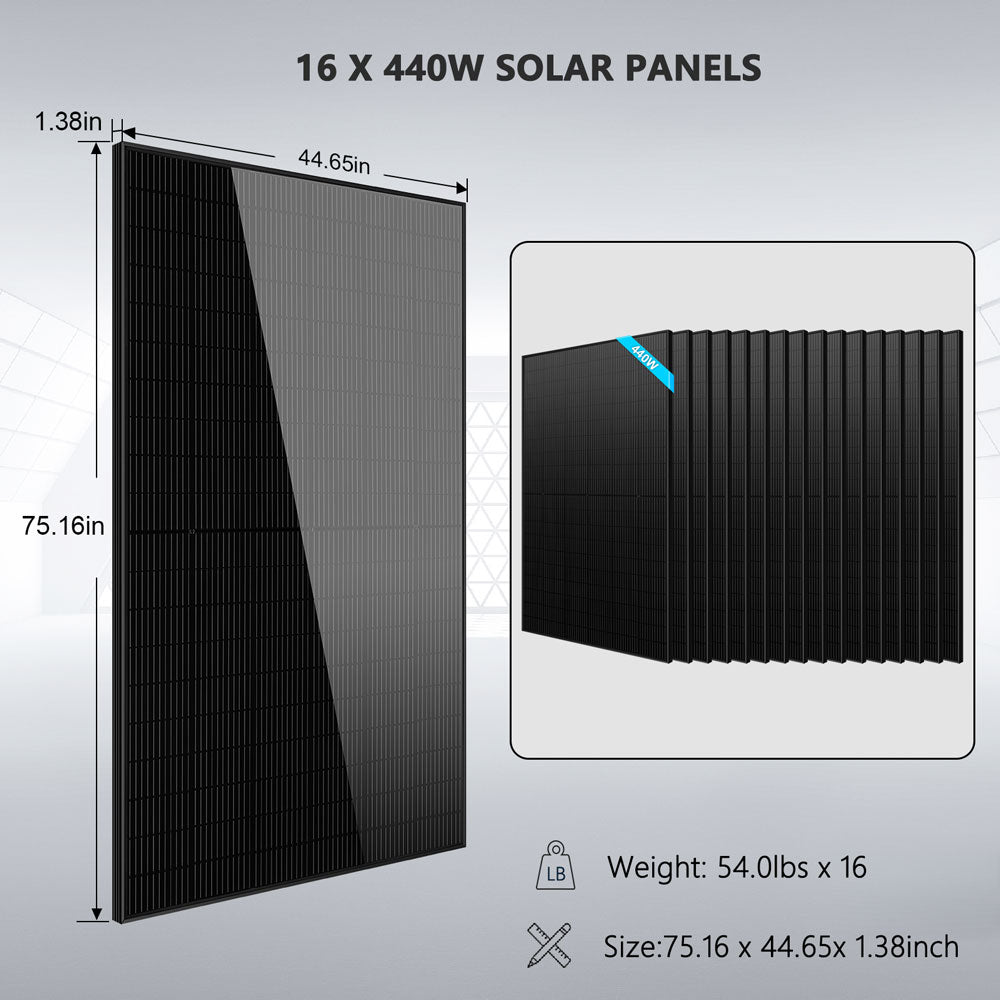

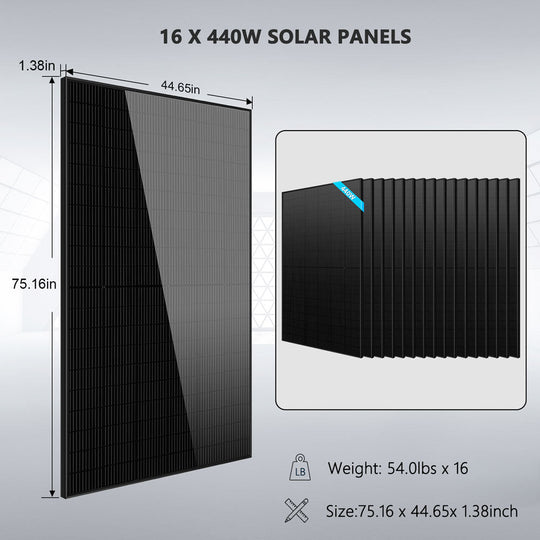

- 16 X 440W Watt Monocrystalline Solar Panels

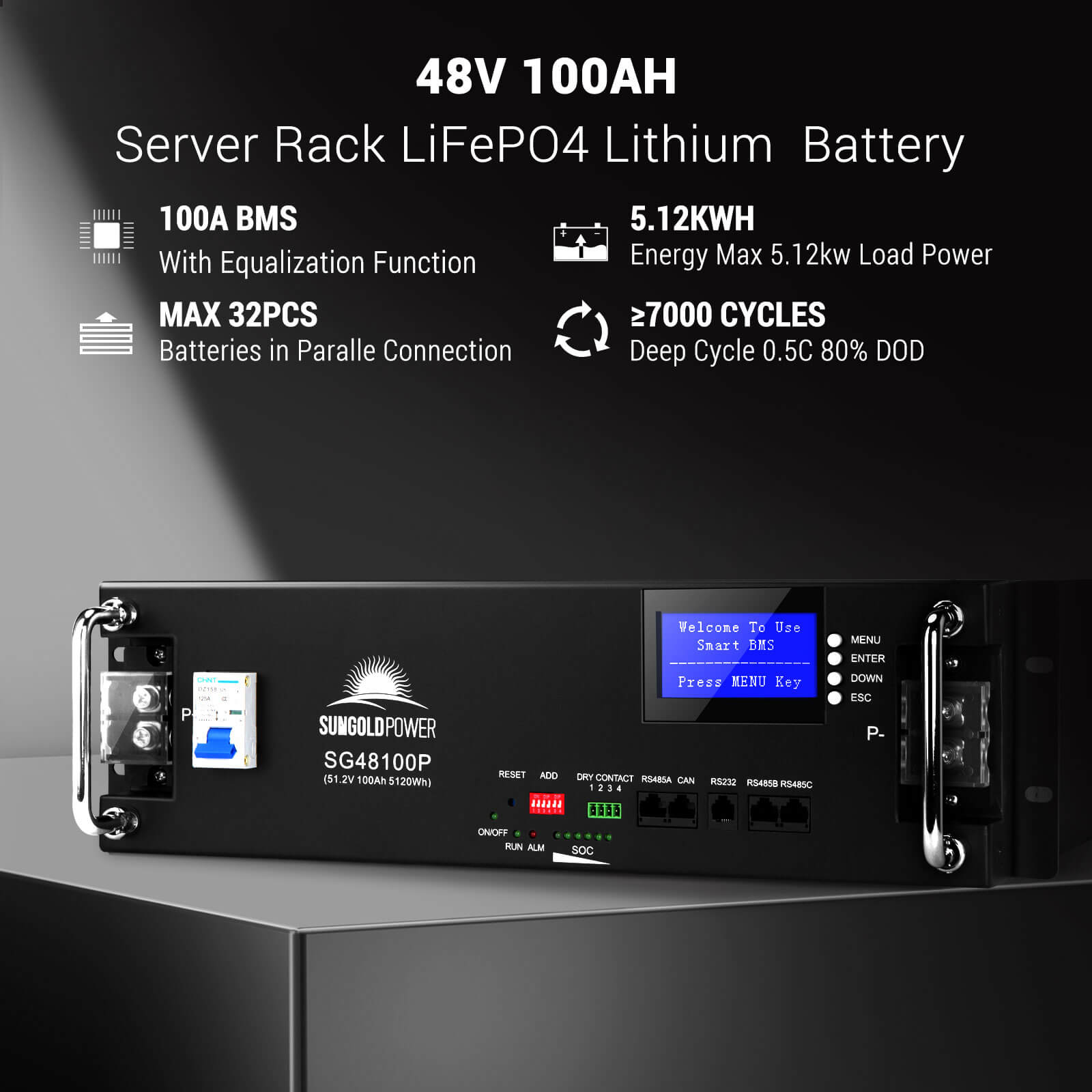

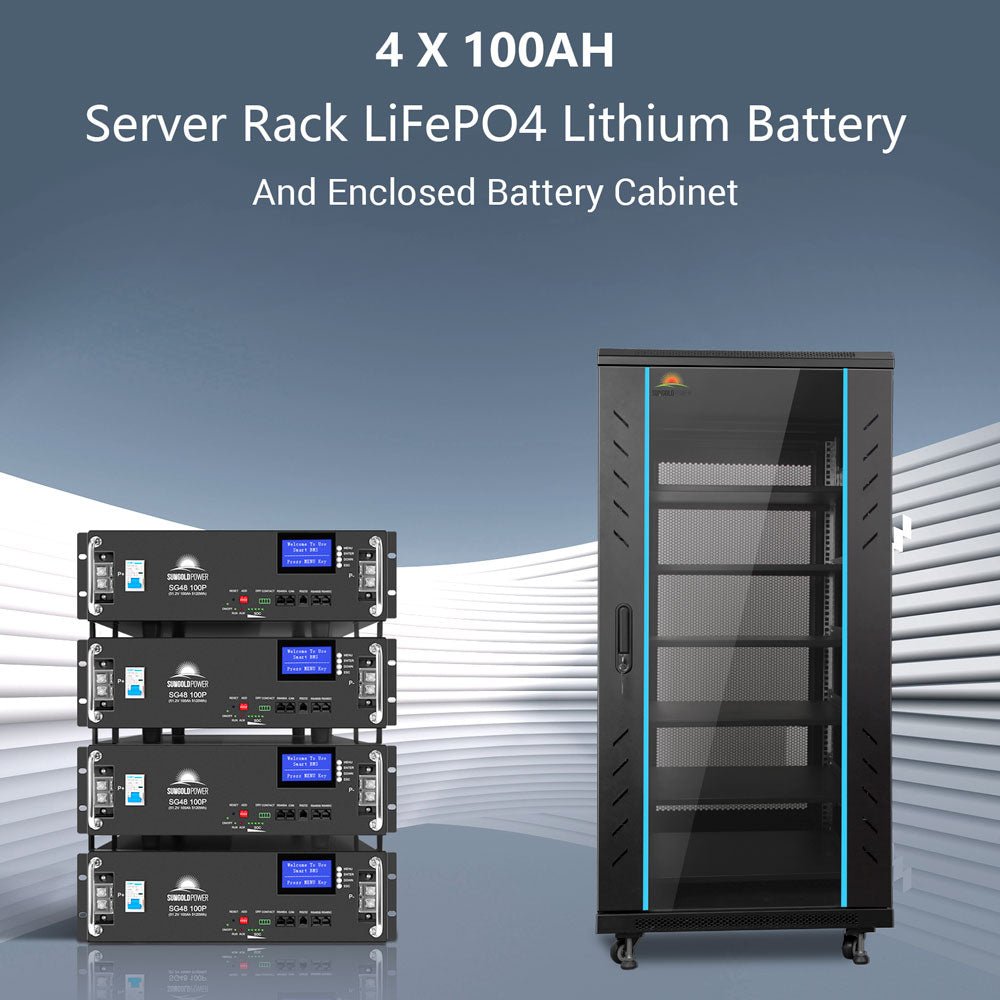

- 4 X 100AH 51.2V Lifepo4 Battery
- 1 X Enclosed Battery Cabinet for 4 X 100AH 51.2V Lifepo4 Batteries
- 2 Sets X 50 Feet, Solar Extension Cables-Inverter PV input
- 2/0 AWG Battery Cable
- User Manual
Solar Panels Specifications
| Category | Details |
| Nominal Output Power | 10,000W |
| Max. AC Output Power (PF=1) | 11,400W |
| Nominal Output Voltage | 120/240V (Split phase) / 208V (2/3 phase) VAC |
| Inverter Max Parallel Number | 9 |
| Inverter Max. PV Input Power | 15,000W |
| Inverter MPPT Operating Voltage Range | 70V–540V |
| Battery Nominal Voltage | 51.2V |
| Battery Nominal Capacity | 100AH × 4 |
| Battery Quantity | 4 |
| Total Battery Power Energy | 20.48KWH |
| Maximum Battery Cut-off Charging Voltage | 57.6V |
| Battery Discharge Cut-off Voltage | 43.2V |
| Battery Max Parallel Number | 32 |
| Maximum Power Per Solar Panel | 440W |
| Solar Panel Quantity | 16 |
| Total Power of Solar Panels | 7,040W |
| Max-power Voltage Per Solar Panel | 33.72V |
| Max-power Current Per Solar Panel | 13.05A |
| Open-circuit Voltage Per Solar Panel | 39.79V |
SunGold Power 11.4KW 48V Split Phase Hybrid Inverter Manual
SunGold Power LifePo4 5.12KWH Lithium Battery Manual
SunGOld Power 440W Solar Panels Manual
Certificates
For Inverter:UL 1741/CSA C22.2/UL 1699B/UL 1741SB/IEEE 1547:2018/HECO SRD 2.0/CEC Listed
For batteries:UL1973/UL9540A/CE/UN38.3
For solar panels:UL61730/CE/TUV
